Description

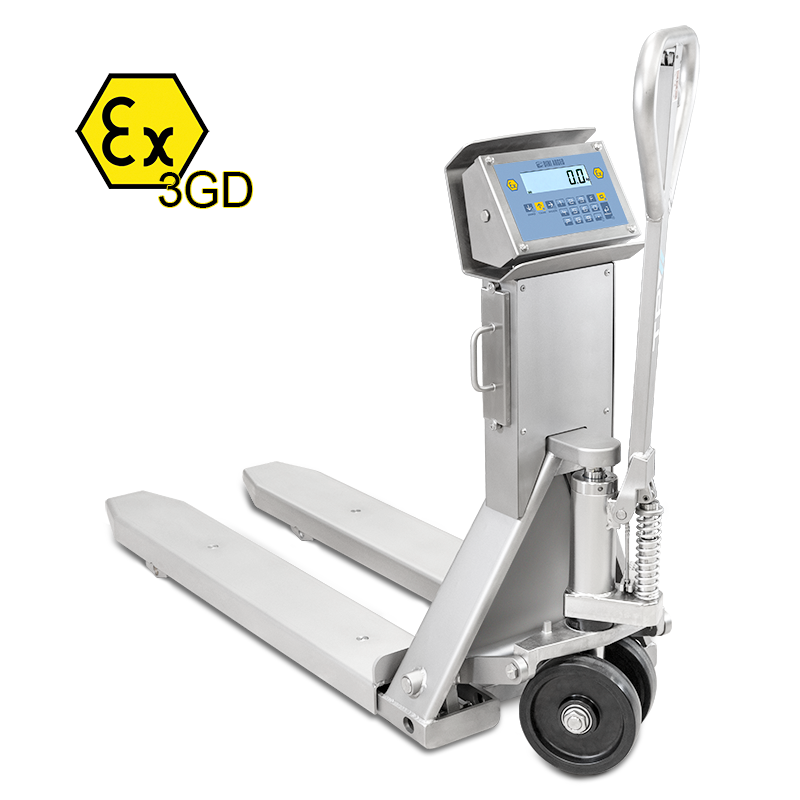

TPWI “EX” 3GD SERIES STAINLESS STEEL ATEX PALLET TRUCK SCALE

Pallet truck scales, with built-in electronic weighing, suitable for harsh working conditions and dangerous areas classified as hazardous (ZONE 2, 22) in accordance with Ex II 3GD IIC T6 T115°C X protection. The weight detection made with four Atex certified IP68 stainless steel load cells guarantees the precision in all work conditions. Structure entirely in stainless steel. Available also CE-M APPROVED

MAIN FEATURES

• Maximum lifting capacity: 2000kg.
• Accuracy: +/- 0.1% of the maximum capacity in the versions for internal use.
• Accuracy: +/- 0.05% of the maximum capacity in the “M” approved versions.
• Fork dimensions 1182 x 550 x 80 mm.
• Weighs about 135 kg.
• Bearing structure entirely in extra thick STAINLESS steel.
• Lifting pump in STAINLESS steel.
• Antistatic driving wheels.
• Double loading rollers with a poliurethane coating.
• Four IP68 STAINLESS steel, Atex certified, shear-beam load cells.
• Weight indicator with waterproof IP68 STAINLESS STEEL case, easy to clean and resistant to harsh and corrosive environments; large high contrast 25mm backlit LCD display, easily visible also in poor lighting conditions and waterproof membrane keypad, with 17 numerical/functional keys.
• Calibration and Set-Up parameters configurable from keyboard or from PC.
• Power supply through extractable rechargeable battery, over 100-hour operating time. Battery rechargeable in safe zone only, connectable and disconnectable from the weighing system also in hazardous area.
• Programmable auto switch-off.
• Equipped with 110/230Vac 50 Hz battery charger.

MAIN FUCTIONS

• Zeroing, Tare, Printing (in a safe area only), numeric IDs
• High Resolution Weighing x 10
• Net/Gross or lb/kg conversion
• Accumulation
• Formula weighing
• +/- Checkweighing
• Percentage weighing
• Counting (Max. resolution of 1.500.000 divisions)
• Set Point Control (with optional interface)

QUOTATION AVAILABLE ON REQUEST

• 680 mm fork width.
• Special fork length from 850 to 1500 mm.
• Special capacity e/o divisions.
• High resolution.
