AISI 316 Stainless Steel. Load cell in Stainless Steel. IP68 and IP69K protection rating.

Ideal for food, chemical, pharmaceutical and cosmetics industries.

Precision class C3, C3MR, C3MI, C6, C6MR.

Category:

Description

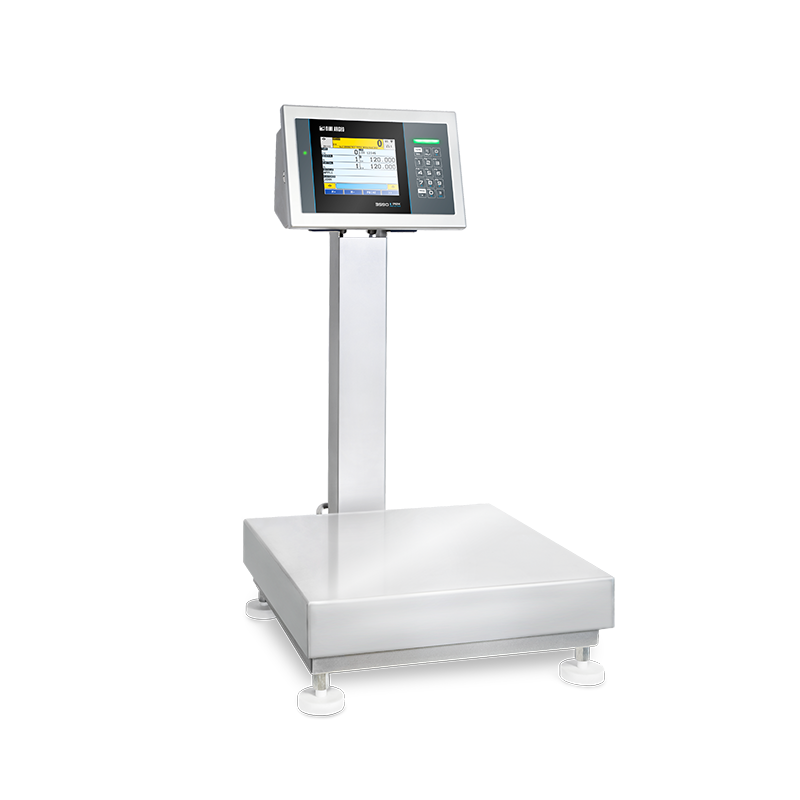

The TE HYGIENX® Single Cell Platform

The new TE HYGIENX platform is designed for use in wet environments and where very high HACCP-compliant standards are required.

Made entirely of AISI 316 stainless steel in Italy, the platform is entirely washable to prevent the build-up of bacteria in the most critical spots.

The IP68 and IP69K rated load cell means that the entire scale can be sanitised with high-temperature and high-pressure jets of water.





HIGHLIGHTS

  • An HCV-EU certified product (C0553035-0001) for food environments compliant with the hygiene requirements of the HACCP standards.
  • IP68/IP69K rating, suitable for use in humid environments and for complete scale sanitisation using high-temperature and high-pressure water jets.
  • AISI 316 stainless steel structure designed to be opened for inspection with removable seals for easy sanitisation. Designed to prevent the accumulation of water and dirt residues.
  • Integrated bubble level.
  • Five limit switches for overload protection.
  • Non-slip feet for environments with high hygienic requirements, ideal for use on stainless steel counters even in the presence of water.

TECHNICAL FEATURES

  • Tubular structure, mechanical parts, small parts and loading surface made of AISI 316 stainless steel.
  • Platform with continuous welding throughout.
  • Hermetically sealed stainless steel load cell with IP68/IP69K rating, suitable for use in wet environments. OIML R60 approved C6 class, with a 3-metre-long shielded cable. Note: The cable length is reduced to just 1 metre in combination with TCBI500-HGX column.
  • Direct connection of the load cell to the weight indicator, without connectors using a cable gland.
  • Sensitivity: 2mV/V +/- 10%.
  • Max. power supply: 15 Vdc.
  • Surface finish for food environments.
  • HCV laser marking for product identification.
  • HCV-EU certified loading surface for use in direct contact with food.

MAIN OPTIONS

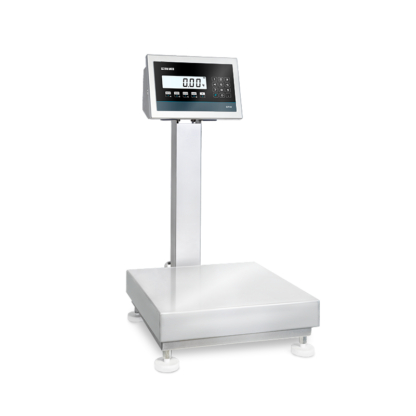

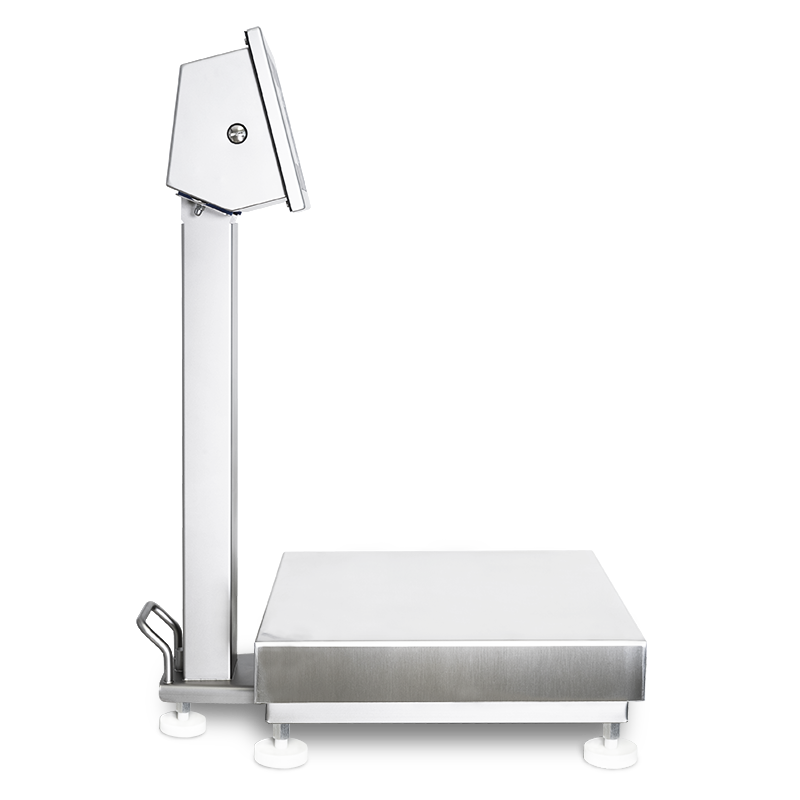

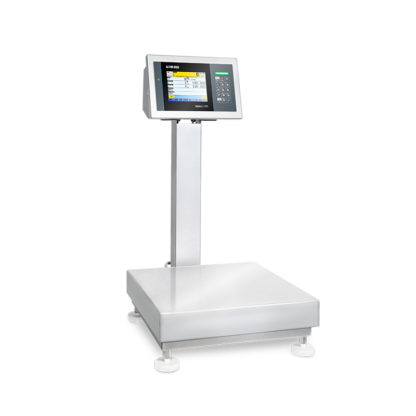

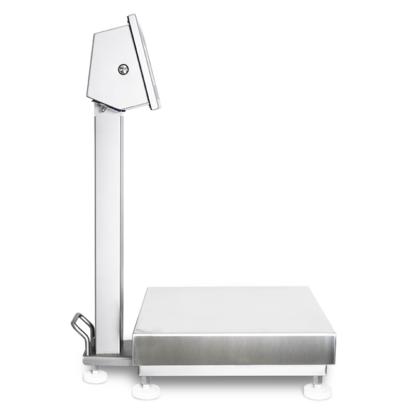

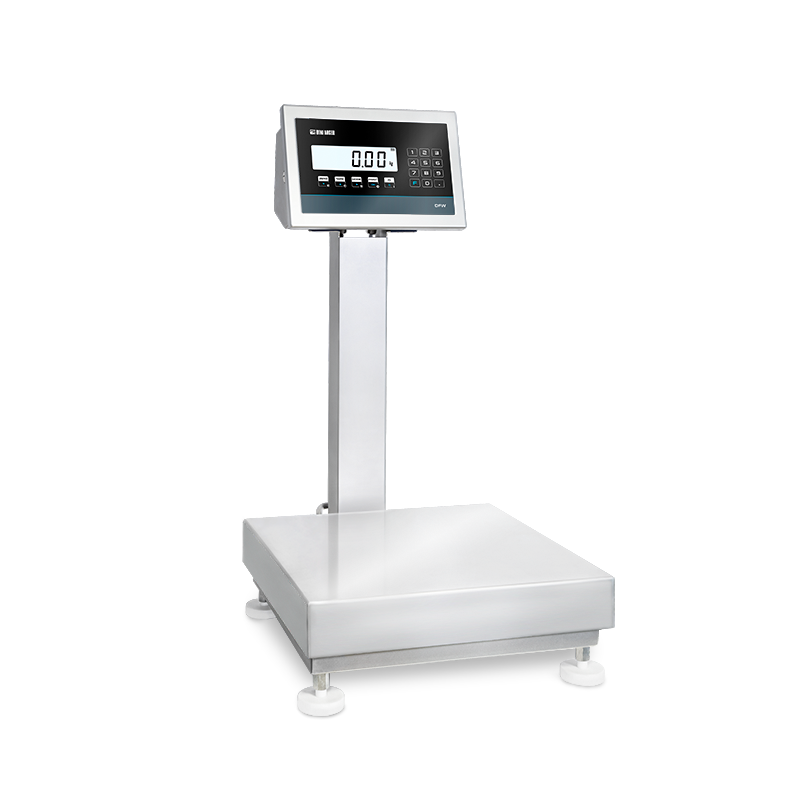

  • Optional column for weight indicator, for integrated installation. Structure designed for easy cleaning, with comfortable support foot and ergonomic carrying handle. Shorter cell cable reduced from 3 metres to 1 metres.
  • Raising frames made of AISI 304 stainless steel.
  • AISI 304 stainless steel trolleys for mobile weighing stations.
  • Weight indicators made of AISI 316 stainless steel with IP69K rating.

GMP-COMPLIANT PRODUCT

This product is a weighing instrument of high quality and precision, designed and manufactured for use in the food, chemical and pharmaceutical industries. It is manufactured according to GMP (Good Manufacturing Practices) standards, in stainless steel, with specific surface treatment and other construction features required in food, chemical and pharmaceutical environments.
