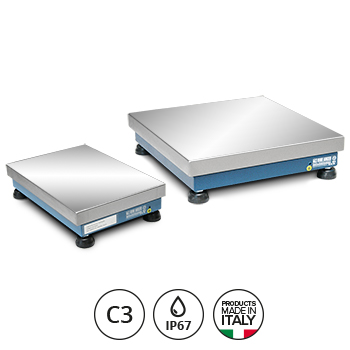

T Series Single Cell Platform

Painted Steel. Load cell in Aluminium. IP67 protection rating.
Precision class C3, C3MR.

Category:

Description

T Series Single Cell Platform

Painted Steel. Load cell in Aluminium. IP67 protection rating.
Precision class C3, C3MR.

Small and medium capacity electronic platforms with a AISI304 stainless steel Surface.

  • Up to 30000d resolution.
  • OIML R60 C3.
  • IP67 protection.

MAIN FEATURES

  • Functions with an approved aluminium “single point” load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards (350 Ohm input resistance).
  • Steel tubular structure, oven-fire painted blue, with adjustable resting feet and level.
  • Fitted with AISI 304 satin finish stainless steel loading surface.
  • Up to 15 Vdc power supply.
  • Shielded 3m connection cable with connectors for connection to the indicator.

OPTIONS FOR ATEX VERSION

  • CCATEX: ATEX certificate for each load cell
  • DCATEX2GD: Declaration of ATEX conformity of whole PLATFORM + ATEX 2GD DINI ARGEO INDICATOR
  • DCATEX3GD: Declaration of ATEX conformity of whole PLATFORM + ATEX 3GD DINI ARGEO INDICATOR

AVAILABLE UPON PRICE ESTIMATE

  • Belt and roller units to be applied on the loading Surface.
  • Special sizes and capacities.
  • IP68/IP69K protection.
