PB Series

PB Series

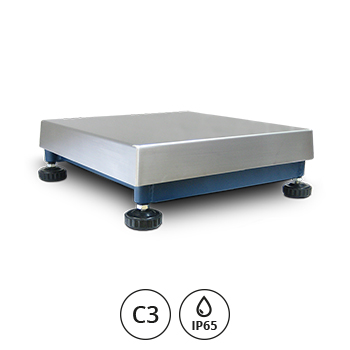

PB Series Single Cell Platform

Painted Steel. Load cell in Aluminium. IP65 protection rating.
Precision class C3.

Category:

Description

PB Series Single Cell Platform

Painted Steel. Load cell in Aluminium. IP65 protection rating.
Precision class C3.

Small and medium capacity electronic platforms with a stainless steel surface having a precise and sturdy structure.

  • Up to 15000d resolution.
  • OIML R60 C3.
  • IP65 protection.

TECHNICAL FEATURES

  • Optional calibration service from 6000d to 15000d (internal use); 3000e approved OIML R60 C3.
  • Functioning with a “single point” 350 Ohm aluminium load cell, IP65 protection degree.
  • Steel tubular structure, oven-fire painted blue, with adjustable resting feet and level.
  • Fitted with stainless steel loading surface.
  • Up to 15 Vdc power supply.
  • 3m shielded cable for connection to the indicator.
  • Upon request:
    – 3000e CE-M approval;
    – support column for indicator.
