GEX-FZ-1G

High precision Laboratory balance for ATEX ZONE 0

Category:
Downloads
Datasheet

Description

GEX-FZ-1G  High Precision Balance, for ATEX Zone 0

High precision balance for hazardous areas. Protection rating II 1G Ex ia II B T4 Ga for gas.
CE-M approved (OIML R-76 / EN 45501).

MAIN FEATURES

  • 27-key numeric and functional waterproof keyboard.
  • 9-digit 25 mm LCD display.
  • IP65 stainless steel structure.
  • Dimensions 294 x 352 x 570 mm.
  • Weighing sensor with tuning fork technology.
  • Stainless steel plate, dimensions:
    – GEX-FZ620-1G, Ø 140 mm;
    – GEX-FZ6200-1G e GEX-FZ15000-1G, 190×190 mm;

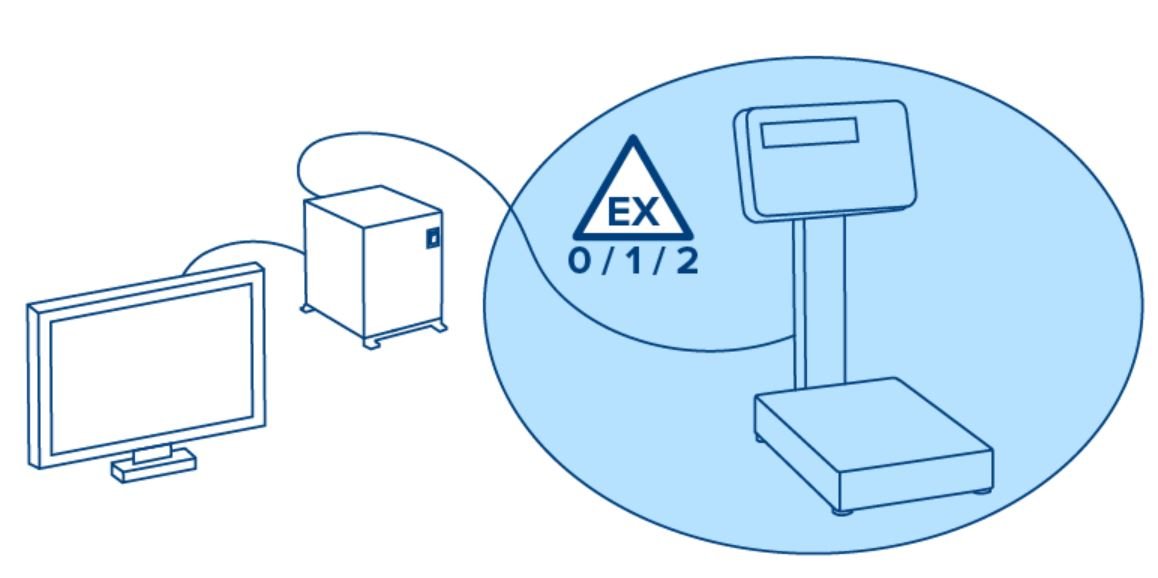

  • RS232 serial output incorporated in the power supply in safe area.
  • 100 – 240VAC power supply in safe area, with RS232 serial port.
  • 5m power cable.
  • Version approved for CE-M II legal-for-trade use.

AVAILABLE FUNCTIONS

  • Zeroing;
  • Semiautomatic tare;
  • Preset tare;
  • Tolerance check;
  • Totalisation in loading and unloading;
  • Up to 100 storable tares;
  • Bar graph display in relation to flow rate;
  • 6 configurable serial communication protocols, sending the string continuously, at stability, on demand or at the press of a key;
  • 5 selectable weighing filters;
  • Zero tracking.

WEIGHING MODES

  • Weighing in grams;
  • Percentage weighing for formulation and recipe dosing;
  • Customised coefficient for liquid weighing and grammage.

MAIN CERTIFICATIONS

  • II 1G Ex ia II B T4 Ga
  • OIML R76 Manuals, safety instructions and ATEX EU declaration of conformity in English language.

Trade Verification available upon request

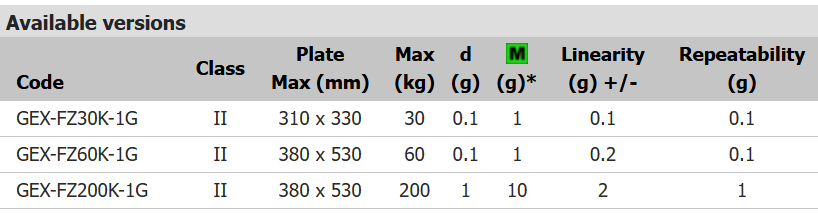

Capacity Options GEX High Precision

Capacity Options GEX Precision
