e-Nod 4F Box Version

e-Nod 4F, Loss in Weight

SKU: bbebb22fe6db-1 Categories: Loss in Weight Weighing with eNod, Loss in Weight

Downloads

Description

Intelligent Weighing Controller for Automated Systems for Continuous weighing and Loss-in-weight feeders.

±500 000 d, 200 meas/s

Presentation as Stainless Steel IP65 Housing
Up to 8 strain gauge load cells
Load cell failure detection device
Programmable digital filters
Continuous flow rate and weight total calculation
Flow control with built-in self-adjustable PID
Automatic control of feeder refilling
4 digital inputs and 4 digital outputs for the dosing process control
Analog output 0-10V or 4-20mA (IO+ option)
1 USB port for setting by PC
Version with RS485/CAN PLC output and MODBUS-RTU, CANOpen or PROFIBUS-DP protocols
Version with double-Ethernet output and MODBUS-TCP, EtherNet/IP, EtherCAT or PROFINET protocols
Integrated web server for monitoring and remote setting
1 RS485 for eNodTouch touch screen panel
Optional Bluetooth communication

Type	Intelligent Weighing Controller for Automated Systems
Application	Loss in Weight
Form	BOXED
Comms	TBC
IP Rating	IP65

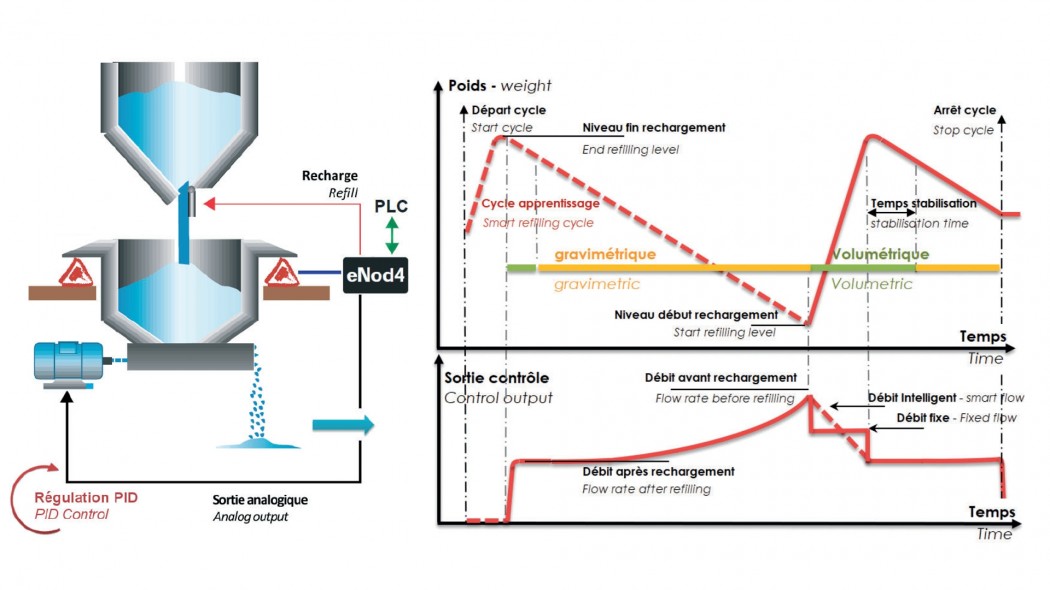

Management of target flow and target total
Flow regulation by PID controller
Function of automatic adjustement of PID parmeters by self-learning
Automatic management of alternating gravimetric dosing phases and refilling phases
Management of dosing process with digital Inputs / outputs
