Description
Stainless steel digital load cell – Checkweigher – 15 kg … 75 kg
15 kg … 75 kg
- Digital load cell dedicated to high speed weighing process control
- Load cell made of stainless steel, hermetically sealed IP69K
- Max. scale Platform size up to 400 x 400 mm
Weighing capacities 15, 30, 75 kg - Resolution up to 500 000 pts
- Part certificate of NAWI (OIML R76) and AWI (OIML R51 and R61)
- Integrated weighing functions: High speed transmitter, Dynamic checkweighing
- Programmable digital filters
- 2 digital inputs and 4 digital outputs
- 1 RS485 output and 1 CANbus output
- MODBUS-RTU and CANOpen® protocols
Digital load cell for checkweighing in harsh environments
DVX-C is a digital load cell especially designed for manufacturers of packaging machines:
- The DVX load cell is made of stainless steel and hermetically welded to IP69K protection level.
- It combines a very high accuracy with the highest level of protection to allow frequent cleaning and continuous use in harsh environments.
- The DVX-C load cell integrates a powerful signal processing electronics with a user resolution of 500,000 points and a library of digital filters dedicated to the elimination of mechanical vibrations and disturbances.

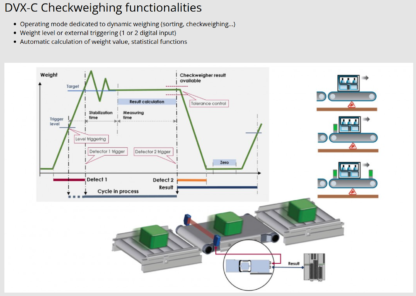

- It integrates functions dedicated to dynamic weighing. It performs acquisitions at very high speed and automatically calculates a usable weight value for on-the-fly weighing applications or grading applications.
- Each load cell is equipped with 2 inputs and 4 logic outputs to control the process.
- With different communication ports depending on the version (fieldbus and ethernet), it can be easily connected to any automated system.
