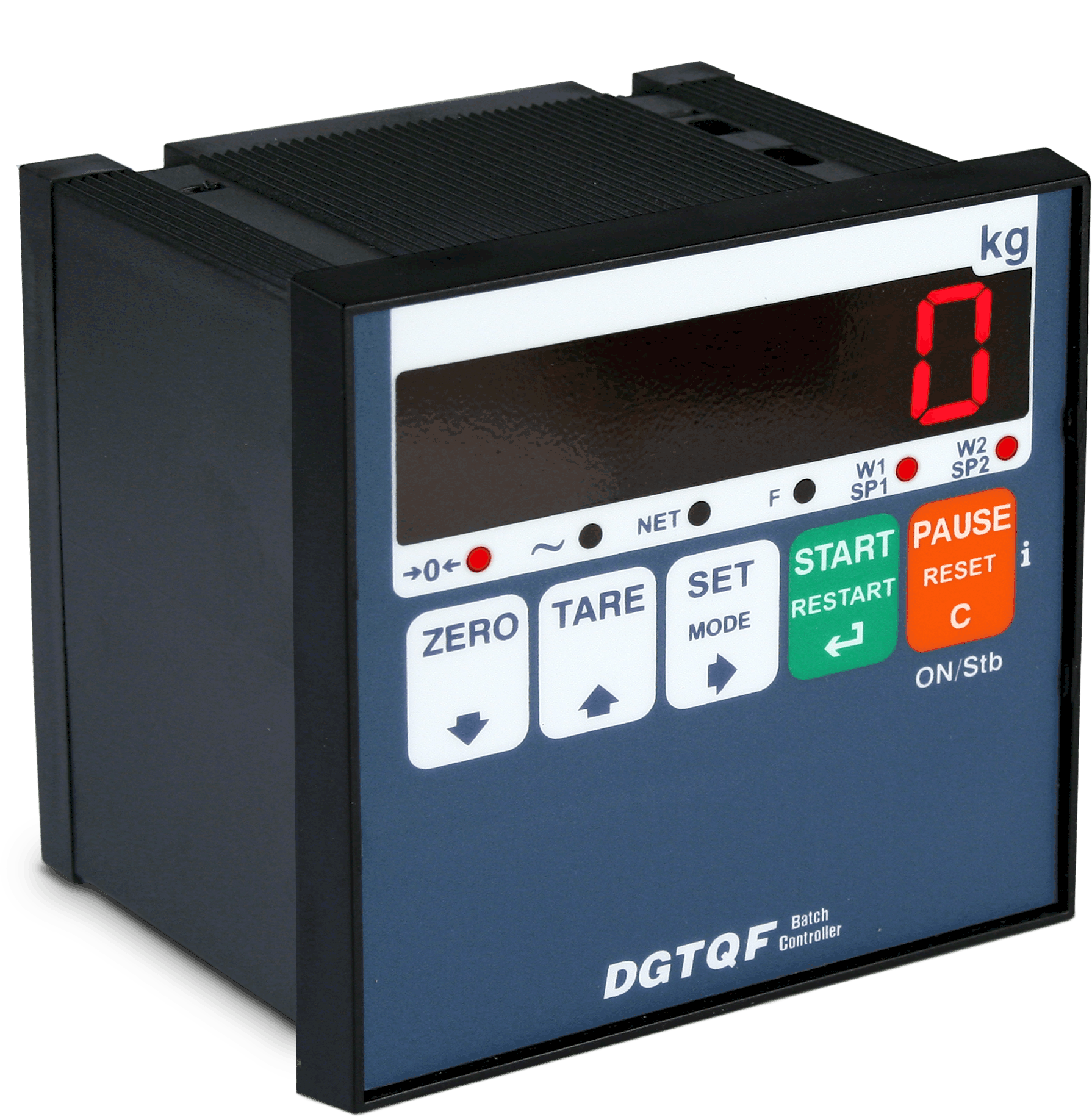

“DGTQF”: DGTQFAN – Micro-controller for Industrial Dosage Systems + Analogue Output

SKU: 09cb5ab04716-1 Category:

Description

“DGTQF”: DGTQFAN – Micro-controller for Industrial Dosage Systems + Analogue Output

High performing micro-controller which, through the simple programming of the parameters, offers the possibility to manage single product dosage systems in loading or in unloading, or multi-product dosages and mixtures.



Additional information

ATEX

No
Display Type

RED LED
Main Functions

Programmable

Power

Comms

YES
IO

Trade

IP Rating

IP54

MAIN FEATURES

  • Easy to use 5-key waterproof keyboard.
  • Highly efficient red LED display with 6 13-mm digits and 6 LEDs for showing active functions.
  • Case for panel mounting in Abs according to DIN standard, 96 x 96 x 80mm (lxhxp). Panel cut-out 90 x 88 mm (lxh) for panel mounting.
  • A/D 24-bit sigma-delta conversion with 4 channels, up to 400 conv./sec. auto-select.
  • Connectable with up to 8 analogue load cells with 350 Ohm input resistance.
  • Up to 800.000 displayable divisions with internal resolution up to 3.000.000 points.
  • Up to 10.000e or multi-range 2 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use.
  • Calibration, Set-Up parameters, configurable from keyboard or PC with Dinitools.
  • Up to 8 signal linearisation points with DINITOOLS (3 from keypad).
  • Time Date.
  • Memory back-up for recording dosage data in case it’s accidentally turned off.
  • Printing the dosage and consumption data.
  • From 12 Vdc to 24 Vdc power supply.

I/O SECTION

  • RS232/C bidirectional port configurable for connection with external units.
  • RS485 bidirectional port configurable for network connection.
  • Six 150 mA 48 Vac / 150 mA 60 Vdc (NO) photomosfet outputs configurables according to the selected dosage function.
  • 2 configurable opto-isolator photocoupler inputs: 12÷24 Vdc, 5 mA min – 20 mA max for START/STOP dosage.
  • Analogue 16 bit output configurable as 4-20mA, 0-5Vdc or 0-10Vdc.
  • Maximum load applicable on the output current: 300Ohm. Minimum load applicable on the output voltage: 1kOhm.



Approvals:

  • CE-M EN 45501, OIML R-76, OIML R-61 (MID), OIML R-51 (MID)
