3590EGT8

8 inches Touch Screen weight indicator

SKU: 4a08b3271cd7 Category:
Downloads
3590EGT8

Description

“3590EGT8” 8 inches Touch Screen weight indicator

Weight indicator with 8 inches touch screen display. New IP68 housing with adjustable viewing angle brackets. Integrated LED control light on the front panel and Integrated Ethernet port as standard. The 3590EGT8 indicator, in addition to the standard weighing programs that are available also has a development environment for specific applications with an integrated debugger and programming tools for the PC. Thanks to the completely customisable screen layouts it can display all the weighing data, database records and free texts, this considerably simplifies the user operations. CEM approvable (OIML R76/EN 45501, OIML R-51 – OIML R-61 – MID for dynamic check weigher AWI).

Additional information

ATEX

No
Display Type

8" Touch Screen
Main Functions

Programmable

Power

Comms

YES
IO

Trade

IP Rating

IP68

TECHNICAL FEATURES

  • 8 inches (160x120mm) resistive backlit color touch screen graphic display. Suitable for use with gloves.
  • Stainless steel case with adjustable inclination and IP68 protection.
  • Multilingual software, available in: Italian, English, German, French and Spanish. It is also possible to enter our own translation, thanks to the new software “CUSTOM LANGUAGE TOOL”, downloadable from the DOWNLOAD section of this page.
  • 3 colour high brightness LED control light.
  • Available touch screen keyboards: QWERTY, AZERTY or QWERTZ.
  • Dimensions (lxwxh): 328x243x129 mm.
  • As standard fitted with an adjustable bracket, for bench or wall mounting.
  • Real time clock and permanent data storage.
  • Supplied with alibi memory, integrated on the motherboard.
  • Slot for internal micro SD (optional) to store logos.
  • Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
  • Connectable to printers and labellers with free programming of the printout formats.
  • 110-240 Vac power supply or external rechargeable battery pack (optional).
  • Motherboard with removable screw terminals



  • Functions available with DINITOOLS Utility Software, even from remote (WEBSERVER mode via internet).
    – Configuration, data entry and print formatting.
    – Transmission and storage of all the information on PC.
    – Complete backup of the configuration.
    – Instrument calibration with numeric values (theoretical calibration).

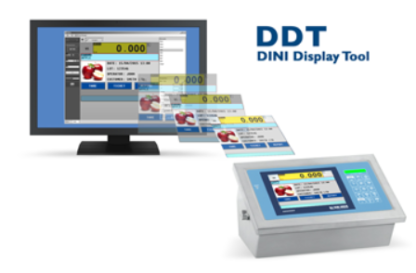

    – Customisation of the layouts.
    – Development environment for custom programs through specific programming language.
  • 24bit A/D converter, 4 channels, up to 3200 conv./sec. with auto-select and up to 8 signal linearisation points.
  • 4 independent analogue channels (up to 2 in the EAF03 version).
  • Connectable with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (in the EAF03 version).
  • Management of the most common digital load cells for weigh bridges (with DIGIKIT option and AF03GT firmware), also for applications with CE-M approval.
  • Up to 10.000e OIML or 3 x 3000e @ 0,3 μV/e in approved version CEM.

I/O SECTION

  • 1 internal Ethernet port as standard, to connect to the company network.
  • 1 RS232 serial port on RJ45 connector (if activated, it deactivates the Ethernet port) for connection to printer, PC, PLC, radio module and optional interfaces.
  • 1 RS232 serial port on screw terminals for connection to printer, PC, radio module and optional interfaces.
  • 1 RS232/RS485 serial port on screw terminals, for connection to weight repeater, remote scale, badge reader or digital load cells.
  • 4 optoisolated outputs, expandable up to 16 with optional board.
  • 2 optoisolated inputs, expandable up to 8 with optional board.
  • Modbus RTU Interface.

Optionals:

  • Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector.
  • External Profibus or Modbus/TCP,interface, for automation management.
  • External Profinet, Ethernet/IP, EtherCAT, CANopen or DeviceNet interface (optional, only with standard AF01 weighing program).
  • Bluetooth connection, for quick wireless programming of databases, through PC, smartphone or tablet.
  • Analogue output DAC16O needs the expansion board IOEXPB.



MAIN CERTIFICATIONS

EU Type Examination Certificate (45501:2015) ; OIML R76 ; OIML R-51 – MID automatic checkweighers (require “CHECK” firmware option) ; OIML R-61 – MID automatic filling machines (require “BATCH1-R61” firmware option) ; OIML R134 (AF09)

APPLICATION SOFTWARE

SUPPLIED AS STANDARD:

  • AF01: Totalisation and formula weighing

OPTIONAL:

  • AF02: Pieces/quantity counting
  • AF03: Weighbridges – Input/Output vehicle
  • AF04: Statistical checking of prepackaged goods
  • AF05: Price computing and industrial labelling
  • AF08: Wheel and axle static weighing with 2 or various platforms
  • AF09: Dynamic and static axle weighing with 2 platforms
  • BATCH1: Single product dosage systems in loading and unloading
  • BATCH: Multi-component dosage systems in loading and unloading (IOEXPB board must be included)
  • BATCH-R61: Single product dosage systems in loading and unloading





CUSTOMISED APPLICATIONS

  • Thanks to the integrated development area, fully customised applications can be created autonomously:
  • Specific weighing programmes according to customer requirements
  • Customised weighing programmes for terminal replacement in preexisting systems
  • Wizards, operator messages.
  • Serial port management, protocols customisation.
  • Digital I/O full management.
  • Sequential or simultaneous automations.
  • Data entry, custom archives.
